Build directions

Village Inn

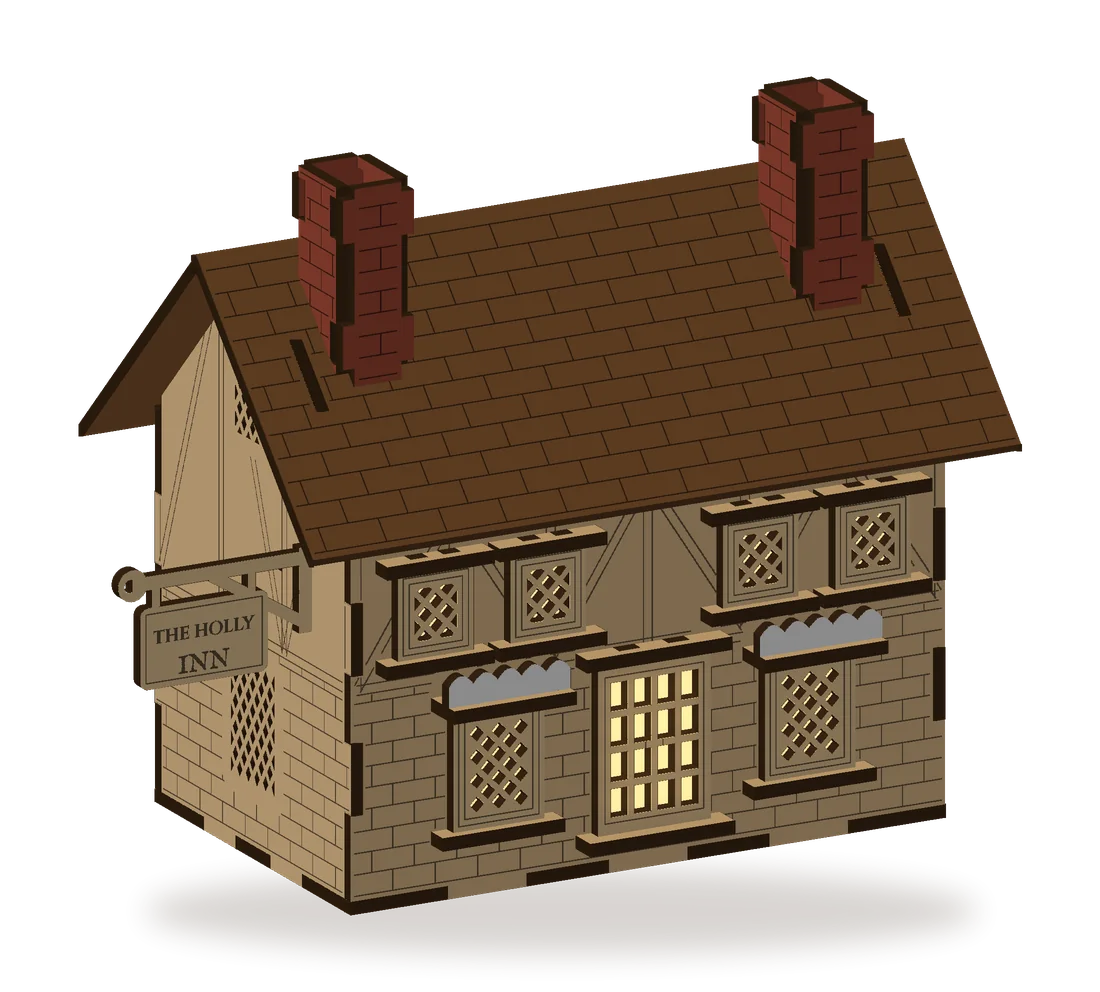

The finished Village Inn with its windows lit

Before you start

How a window goes on

Dress the walls flat on the table before they go up. Every layered window and door goes on in the same order, from the bottom up. Here is one window, piece by piece, with the new piece in gold.

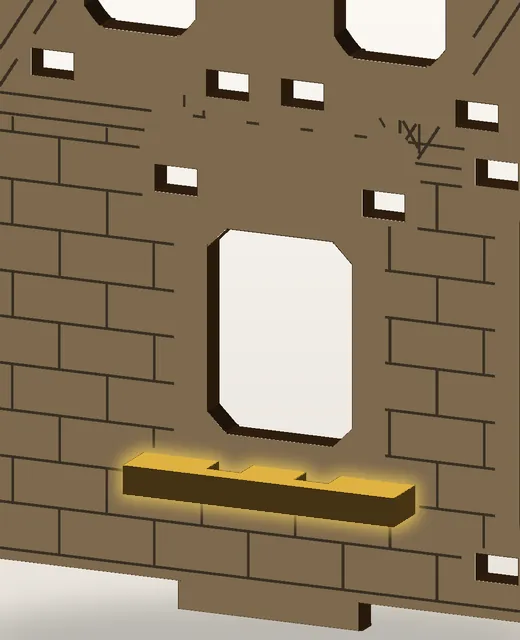

  1. Sill, shown in gold
    1. SillPush the sill's two end tabs into the pair of slots under the window.

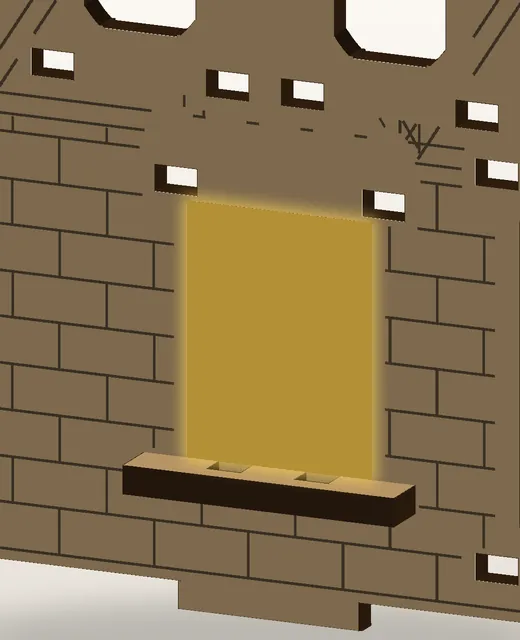

  2. Vellum, shown in gold
    2. VellumLay the vellum on the wall, its bottom edge against the sill.

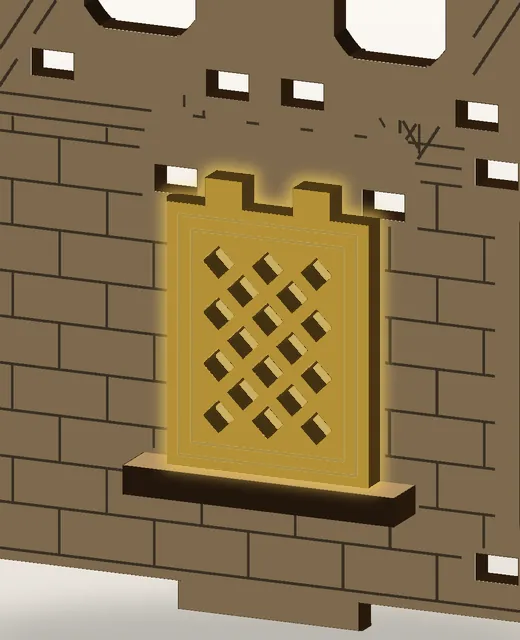

  3. Frame, shown in gold
    3. FrameSet the frame over it so its bottom tabs drop into the sill's notches.

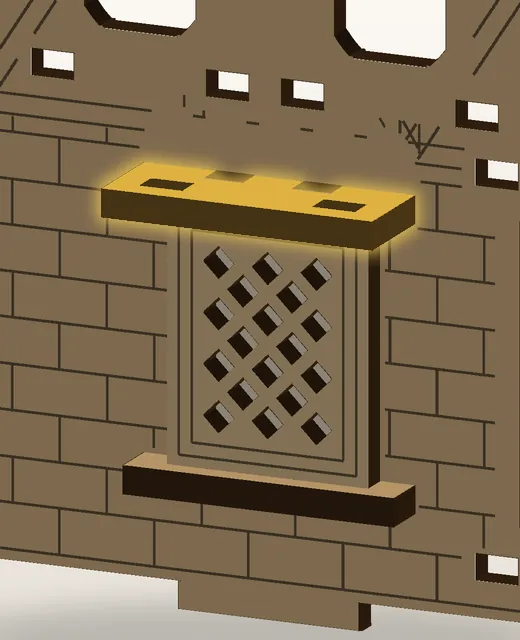

  4. Hood, shown in gold
    4. HoodPress the hood on over the frame's top tabs, its own tabs into the slots above.

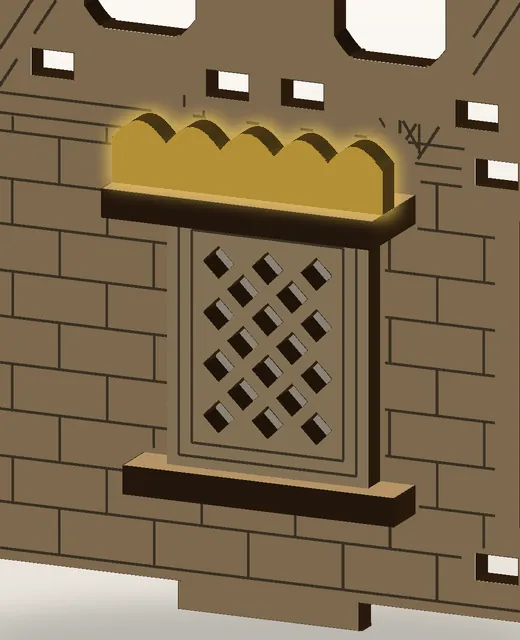

  5. Snow cap, shown in gold
    5. Snow capStand the snow cap in the hood's two front slots.
  1. Step 1: Door and downstairs windows

    Step 1, door and downstairs windows: the new pieces shown in gold

    Lay the long front wall flat on the table, engraved side up. The doors go on first: the step, the vellum against it, the doors into the step's notches, then the hood over their top tabs. Then the two downstairs windows: sill, vellum, frame, hood, and a snow cap in each hood's front slots. Each window goes on the same way, as shown above.

    Pieces for this step
    WINDOW × 2
    SILL × 2
    HOOD × 2
    SNOW CAP × 2
    DOORS
    STEP
    HOOD
  2. Step 2: Upstairs windows

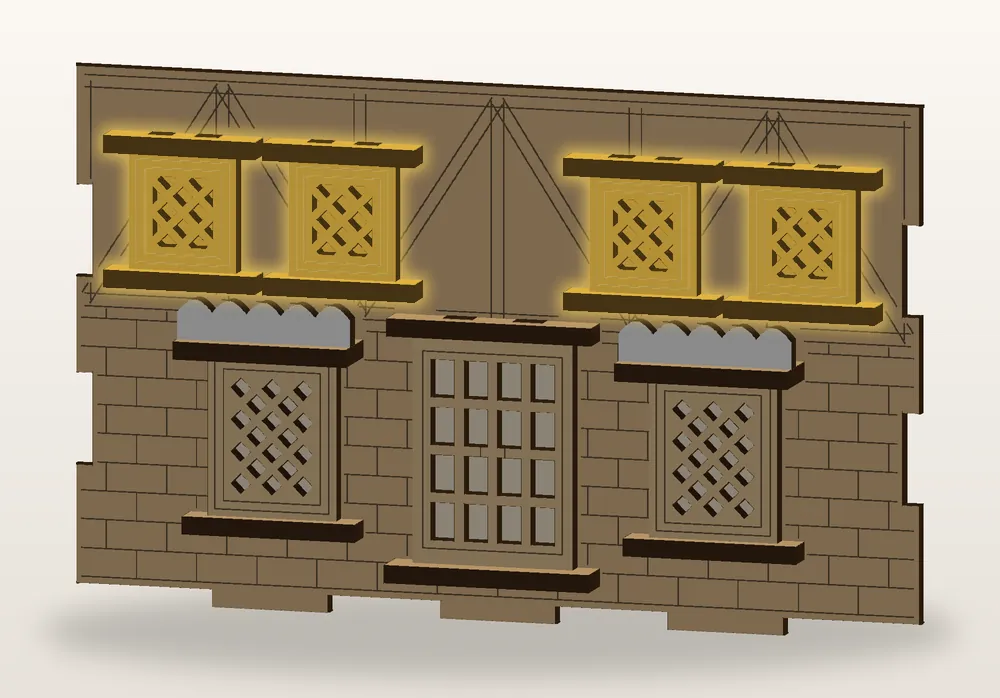

    Step 2, upstairs windows: the new pieces shown in gold

    The four upstairs windows go on the same way, with no snow caps: a cap would hit the roof's overhang.

    Pieces for this step
    WINDOW × 4
    SILL × 4
    HOOD × 4
  3. Step 3: The inn sign

    Step 3, the inn sign: the new pieces shown in gold
    Close up of step 3

    Hold the left end wall engraved side out. From the outside, push the sign's tenon through the slot near the front edge, with the sign's engraved face toward the front. From the inside, slide the wedge through the hole in the tenon, thin end first and toward the front edge, until it stops about halfway. The wedge alone holds the sign.

    Pieces for this step
    SIGN
    WEDGE
  4. Step 4: Floor and left end wall

    Step 4, floor and left end wall: the new pieces shown in gold

    Lay the floor flat, tealight opening in the middle. Stand the left end wall on its end of the floor, sign facing out, and slide it in so its bottom tabs drop into the floor's notches.

    Pieces for this step
    FLOOR
    LEFT END WALL
  5. Step 5: Long front wall

    Step 5, long front wall: the new pieces shown in gold

    The long front wall slides in from its side and meets the left end wall at the corner. The corner tabs mesh like fingers: work them together a little at a time.

    Pieces for this step
    LONG FRONT WALL
  6. Step 6: Right end wall

    Step 6, right end wall: the new piece shown in gold

    The right end wall slides in from its end and locks into the long front wall the same way.

    Pieces for this step
    RIGHT END WALL
  7. Step 7: Long back wall

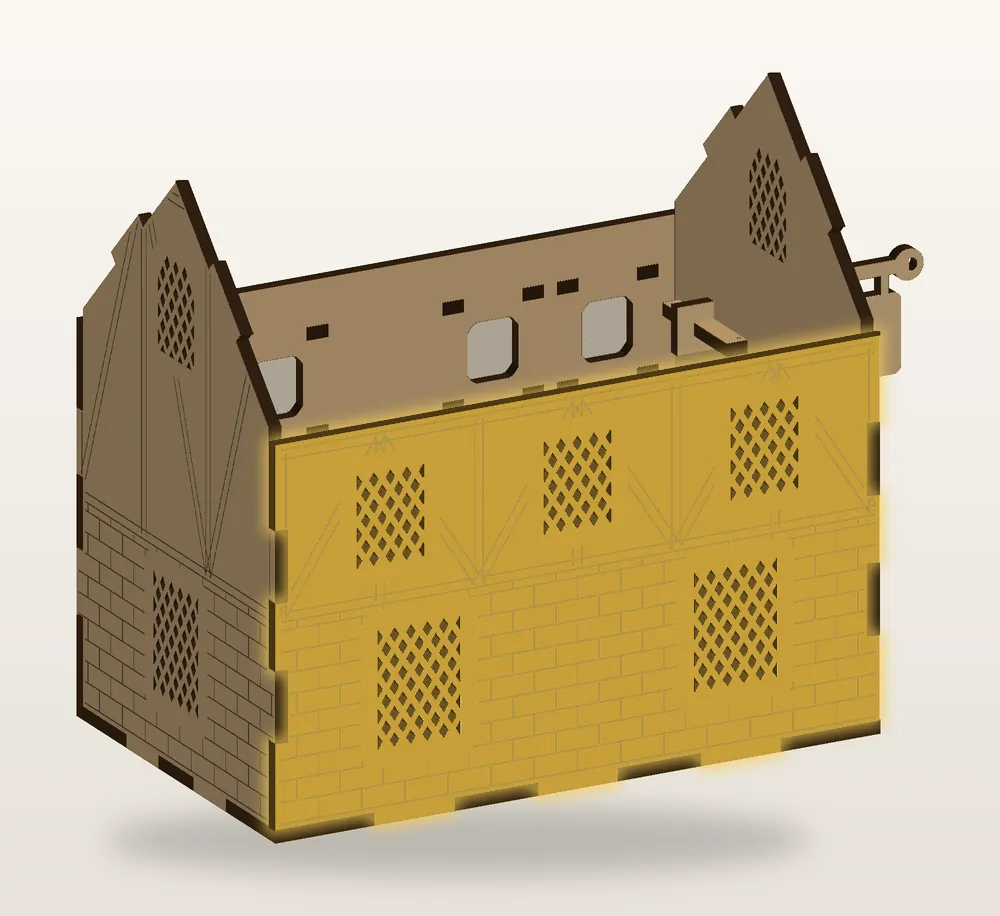

    Step 7, long back wall: the new piece shown in gold

    The long back wall slides in from its side and finishes the box. It meets two walls at once: seat one corner, then the other.

    Pieces for this step
    LONG BACK WALL
  8. Step 8: Roof, back panel first

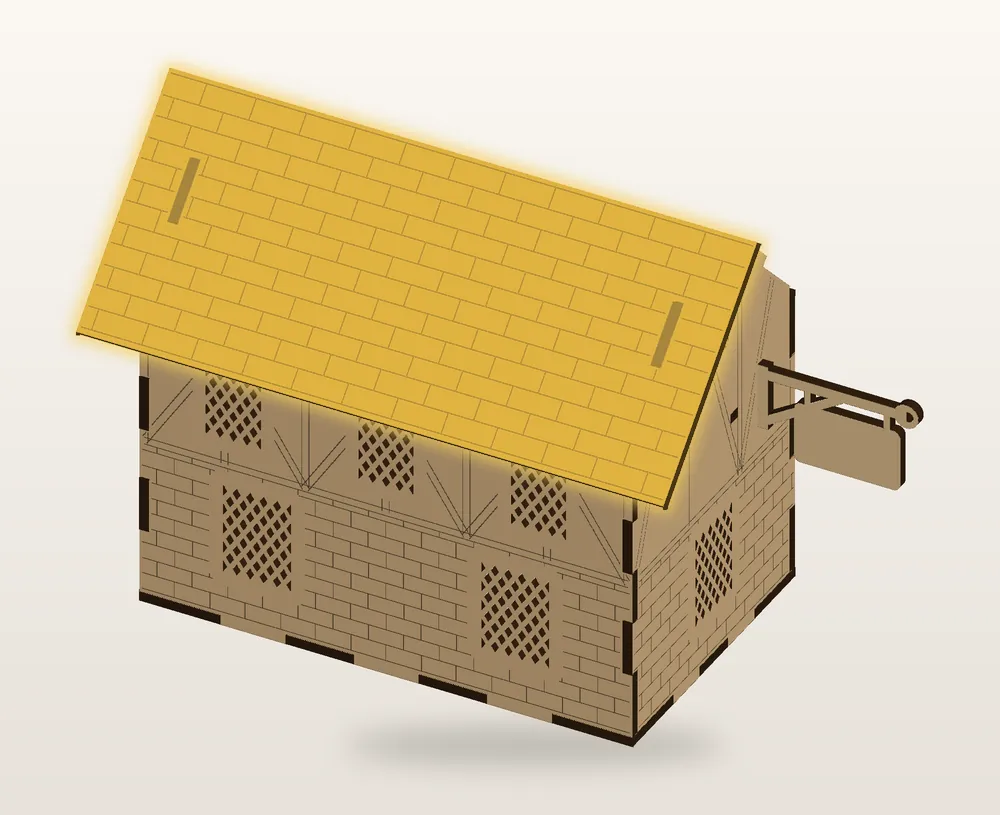

    Step 8, roof, back panel first: the new piece shown in gold

    The back roof panel goes on first (the one without the chimney slots). Its slots drop over the tabs along the tops of the two end walls.

    Pieces for this step
    BACK ROOF PANEL
  9. Step 9: Roof, front panel

    Step 9, roof, front panel: the new piece shown in gold

    Then the front panel. Its top edge runs on past the ridge and laps over the top of the back panel, so the ridge closes tight with no gap for the light.

    Pieces for this step
    FRONT ROOF PANEL
  10. Step 10: Two chimneys

    Step 10, two chimneys: the new pieces shown in gold
    The pieces of step 10 on their own

    Build each chimney off the house first. Start with the tall wall, then slide the two angled side walls in from the sides, brick faces out, sloped edges toward the bottom. Slide the short wall in to close the box. Then set it on the front roof panel: its tabs go into the roof slots and the sloped edges sit flat on the roof.

    Pieces for this step
    CHIMNEY SIDE × 2
    CHIMNEY SIDE × 2
    CHIMNEY, TALL WALL × 2
    CHIMNEY, SHORT WALL × 2
  11. Step 11: Light it up

    The Village Inn lit up at night

    Switch on the LED tealight, set it on the table, and set the inn down over it so the light comes up through the round opening in the floor. Then drape the fairy lights over the roof and switch them on too. Use LED lights only, never a real candle.

All done

Show off your village

Post a photo of it lit up and tag @glazerslaser on Instagram.

Missing a piece or something will not fit? Email support@glazerslaser.com with a photo and we will sort it out.
