Build directions

Icicle Cottage

12 STEPS
31 WOOD PIECES
NO GLUE
ABOUT 4.8 IN TALL

Before you start

Lay your pieces out engraved side up. Each step shows the pieces it uses, drawn the way they lie on the table.
No glue and no tools. The tabs are snug on purpose: press evenly and work each joint in a little at a time. Never force one corner.
Engraved sides always face out. Left and right always mean as you look at the front of the house, the side with the door.
The vellum is the thin paper that makes the windows glow. Each piece is the shape of its window or door frame, just a little smaller, so they are easy to match. If your vellum is still on its little card, press each piece out gently when its window goes on.
Painting? Paint the pieces before you build. Keep the paint thin on the tabs and out of the slots, or the joints get too tight.

How a window goes on

Dress the walls flat on the table before they go up. Every layered window and door goes on in the same order, from the bottom up. Here is one window, piece by piece, with the new piece in gold.

1. SillPush the sill's two end tabs into the pair of slots under the window.

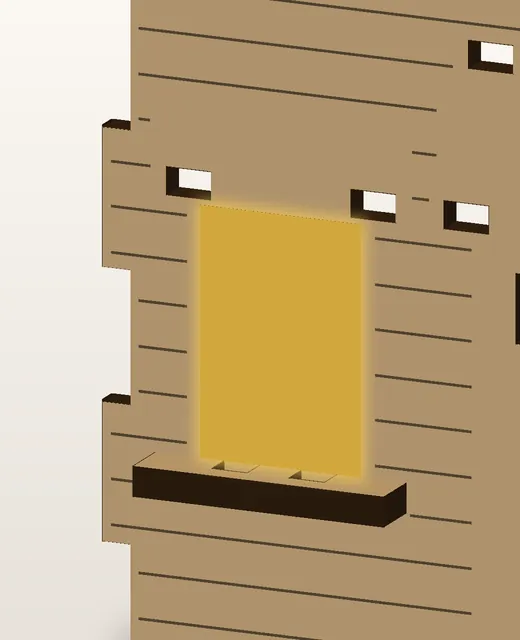

2. VellumLay the vellum on the wall, its bottom edge against the sill.

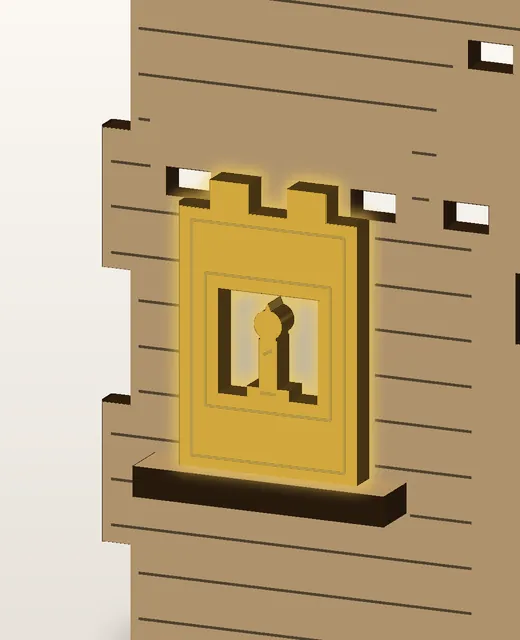

3. FrameSet the frame over it so its bottom tabs drop into the sill's notches.
4. HoodPress the hood on over the frame's top tabs, its own tabs into the slots above.
5. Snow capStand the snow cap in the hood's two front slots.

Step 1: The front door
Lay the front wall flat on the table, engraved side up. Push the door step's two end tabs into their pair of slots near the bottom of the wall. Lay the door's vellum on the wall with its bottom edge against the step, then set the door over it so its two bottom tabs drop into the step's notches. Press the hood on over the door's top tabs, its own two tabs into the slots above, and stand your name plaque in the hood's two front slots.
Pieces for this step
DOOR
STEP
HOOD
NAME PLAQUE
Step 2: The windows
The two candle windows and the round window up in the gable go on next: sill, vellum, frame, hood, then the snow cap in the hood's front slots. Each window goes on the same way, as shown above.
Pieces for this step
WINDOW × 2
SILL × 2
HOOD × 2
SNOW CAP × 2
WINDOW
SILL
HOOD
SNOW CAP

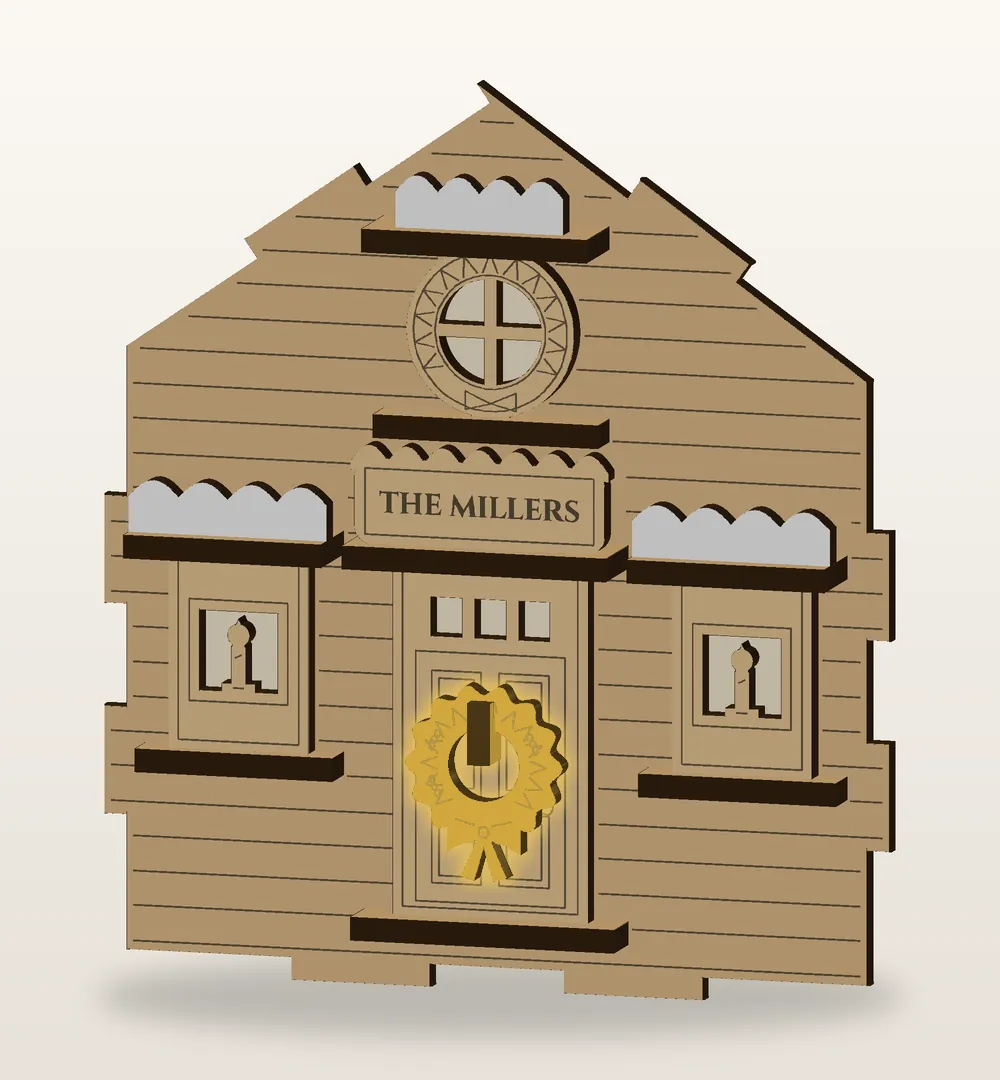

Step 3: Hang the wreath
Push the wreath peg through the slot in the door and the wall from the front, so its lip ends up in front and on top. Lift the wreath, slide it over the peg and let it drop so the notch at the top of its hole sits on the peg.
Pieces for this step
WREATH PEG
WREATH

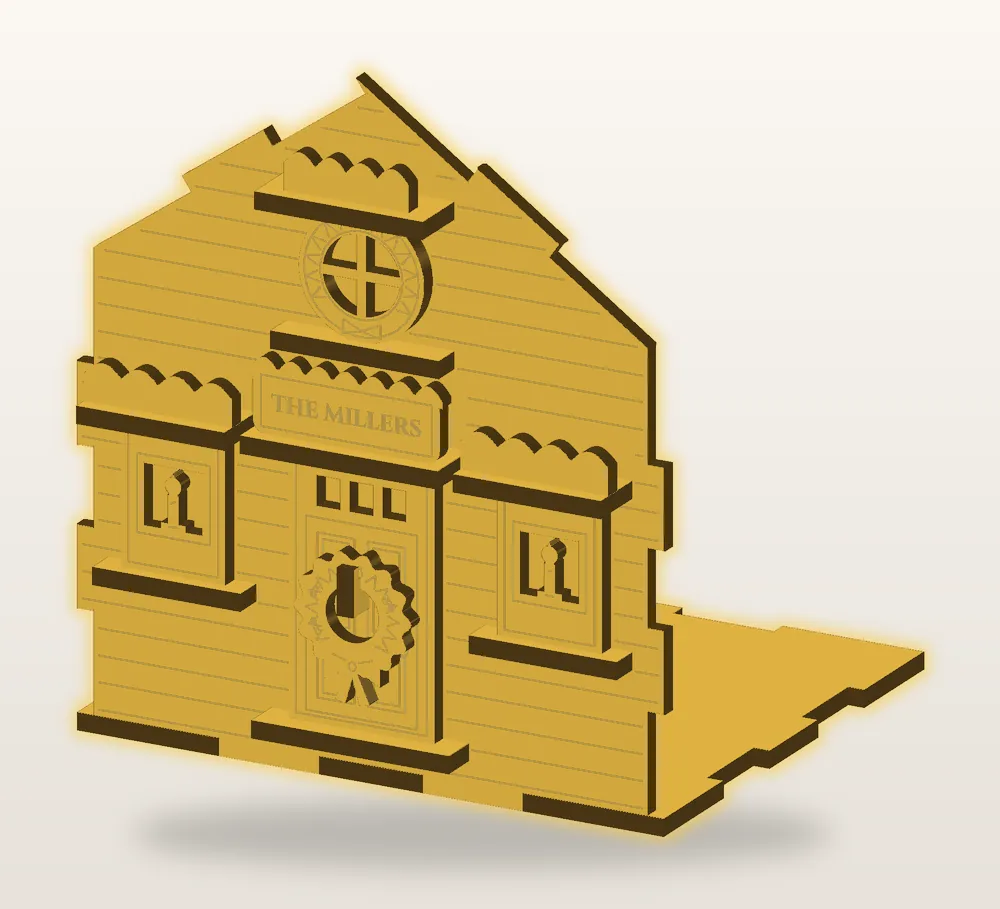

Step 4: Floor and front wall
Lay the floor flat, tealight opening in the middle. Stand the front wall on the floor's front edge, door facing out, and slide it in so its bottom tabs drop into the floor's notches.
Pieces for this step
FLOOR
FRONT WALL

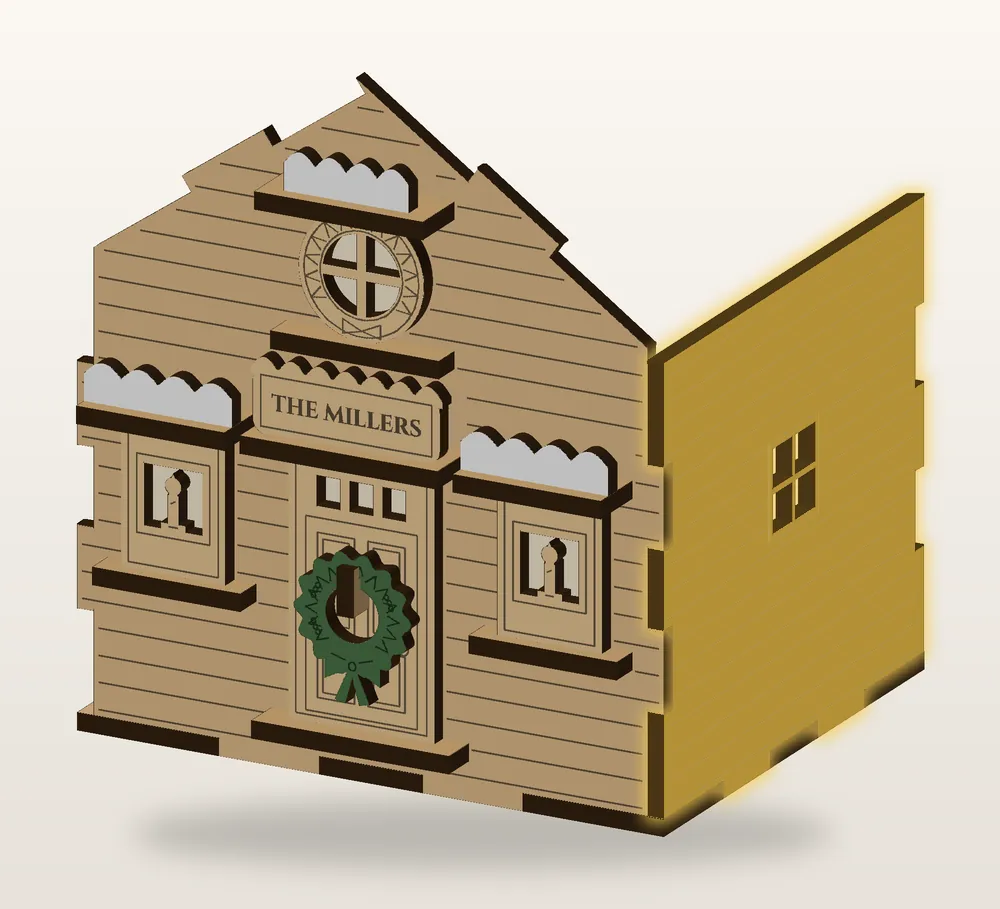

Step 5: Right side wall
The right side wall slides in from its side and meets the front wall at the corner. The corner tabs mesh like fingers: work them together a little at a time.
Pieces for this step
RIGHT SIDE WALL
Step 6: Back wall
The back wall slides in from the back and locks into the right side wall the same way.
Pieces for this step
BACK WALL

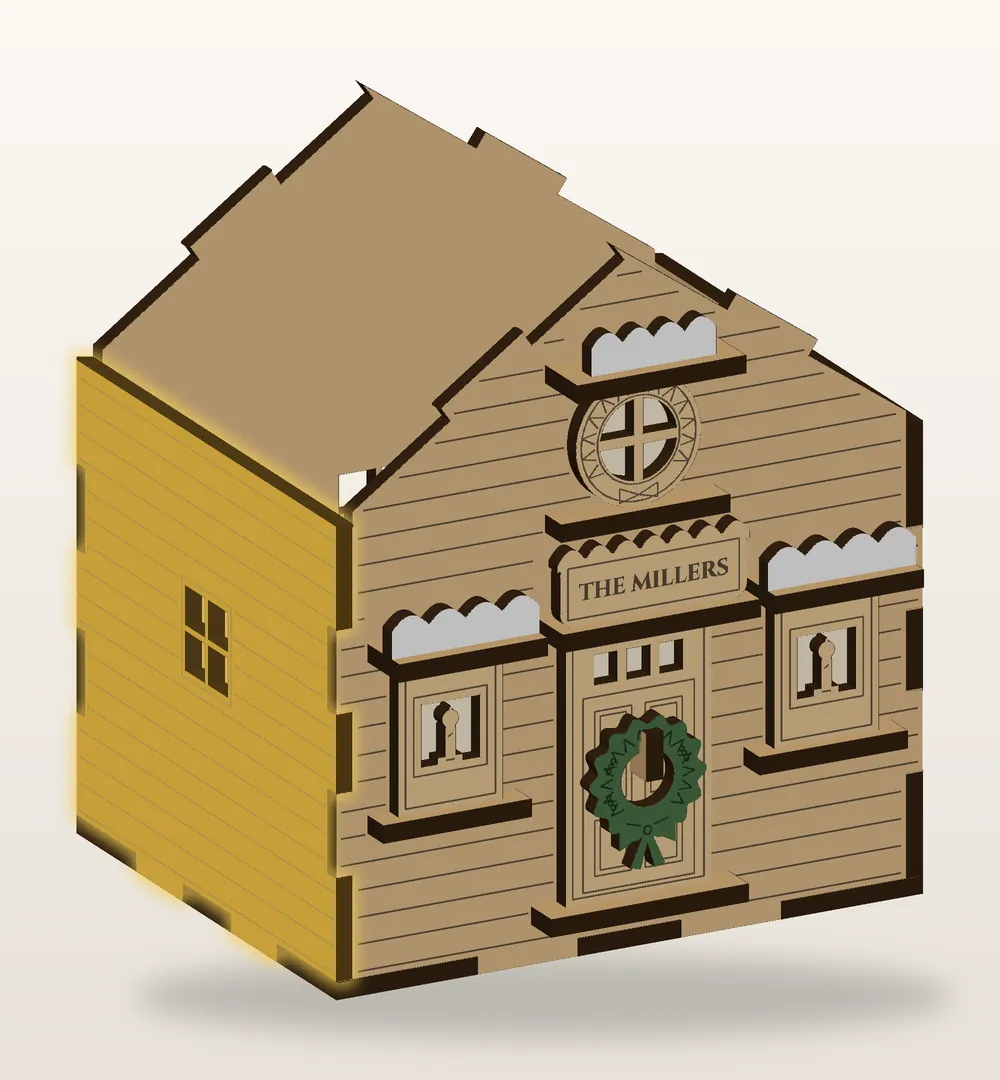

Step 7: Left side wall
The left side wall slides in from its side and finishes the box. It meets two walls at once: seat one corner, then the other.
Pieces for this step
LEFT SIDE WALL
Step 8: Roof, left side first
The left roof panel goes on first (the one without the chimney slots). Its slots drop over the tabs along the tops of the front and back walls.
Pieces for this step
LEFT ROOF PANEL

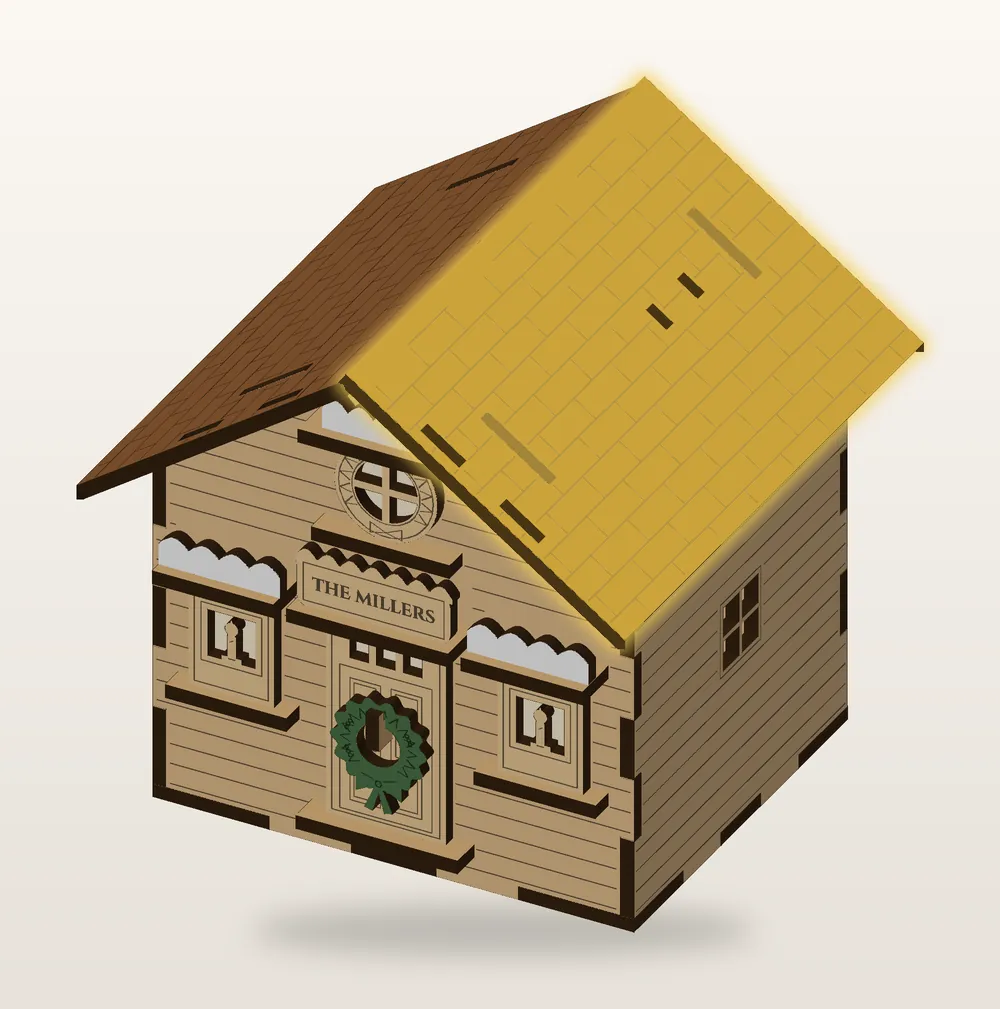

Step 9: Roof, right side
Then the right panel. Its top edge runs on past the ridge and laps over the top of the left panel, so the ridge closes tight with no gap for the light.
Pieces for this step
RIGHT ROOF PANEL

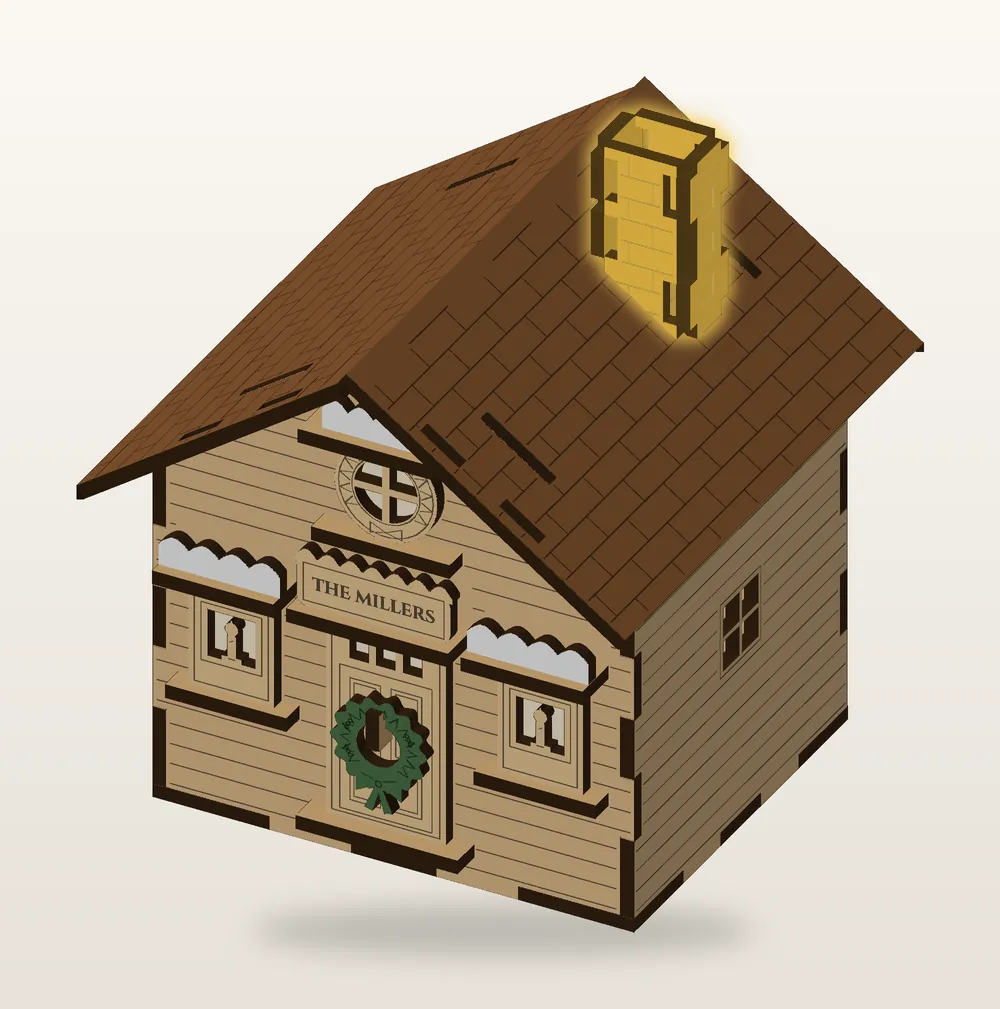

Step 10: Chimney
Build the chimney off the house first. Start with the tall wall, then slide the two angled side walls in from the sides, brick faces out, sloped edges toward the bottom. Slide the short wall in to close the box. Then set the chimney on the roof: its tabs go into the roof slots and the sloped edges sit flat on the roof.
Pieces for this step
CHIMNEY SIDE
CHIMNEY SIDE
CHIMNEY, TALL WALL
CHIMNEY, SHORT WALL

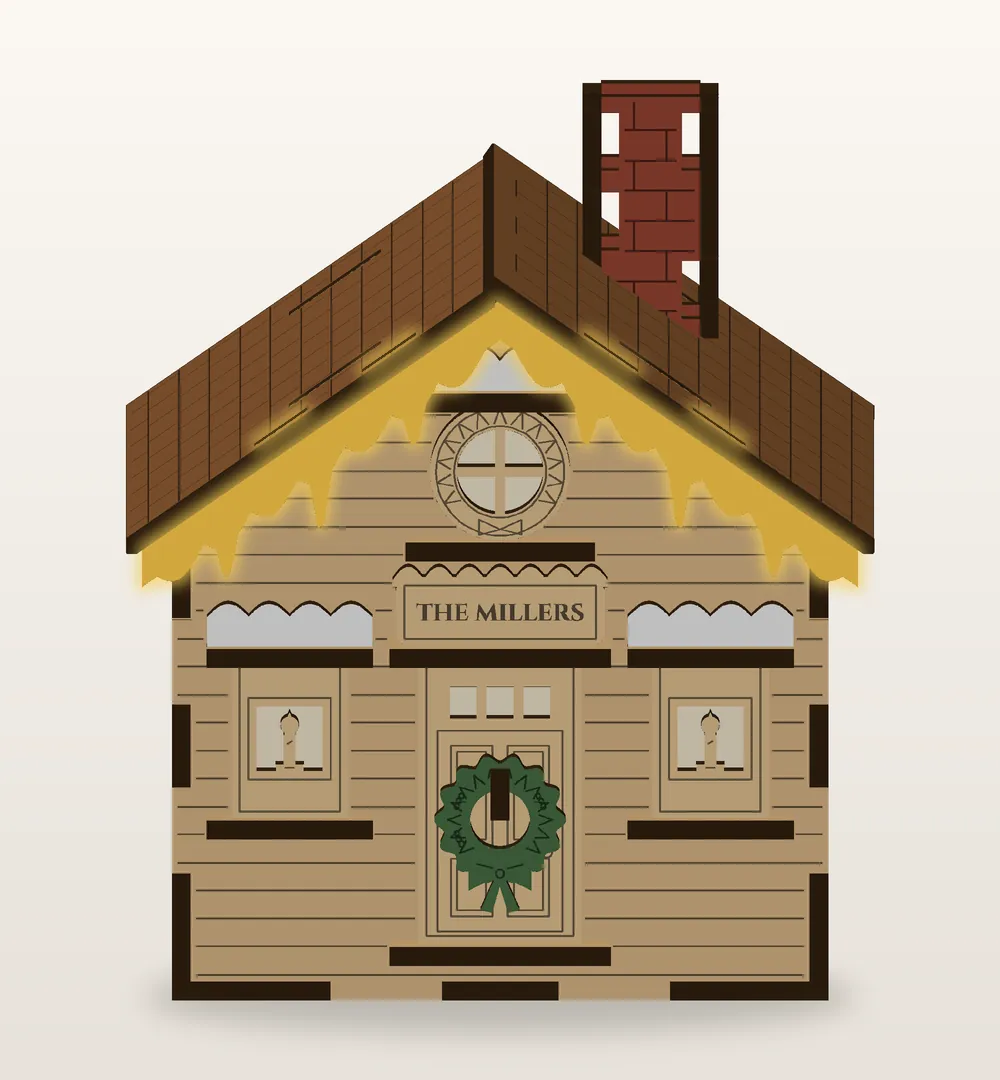

Step 11: Icicle trim
Push each icicle trim half's tabs up into the row of slots near the front edge of the roof. The two halves meet at the peak.
Pieces for this step
ICICLE TRIM, A MIRRORED PAIR

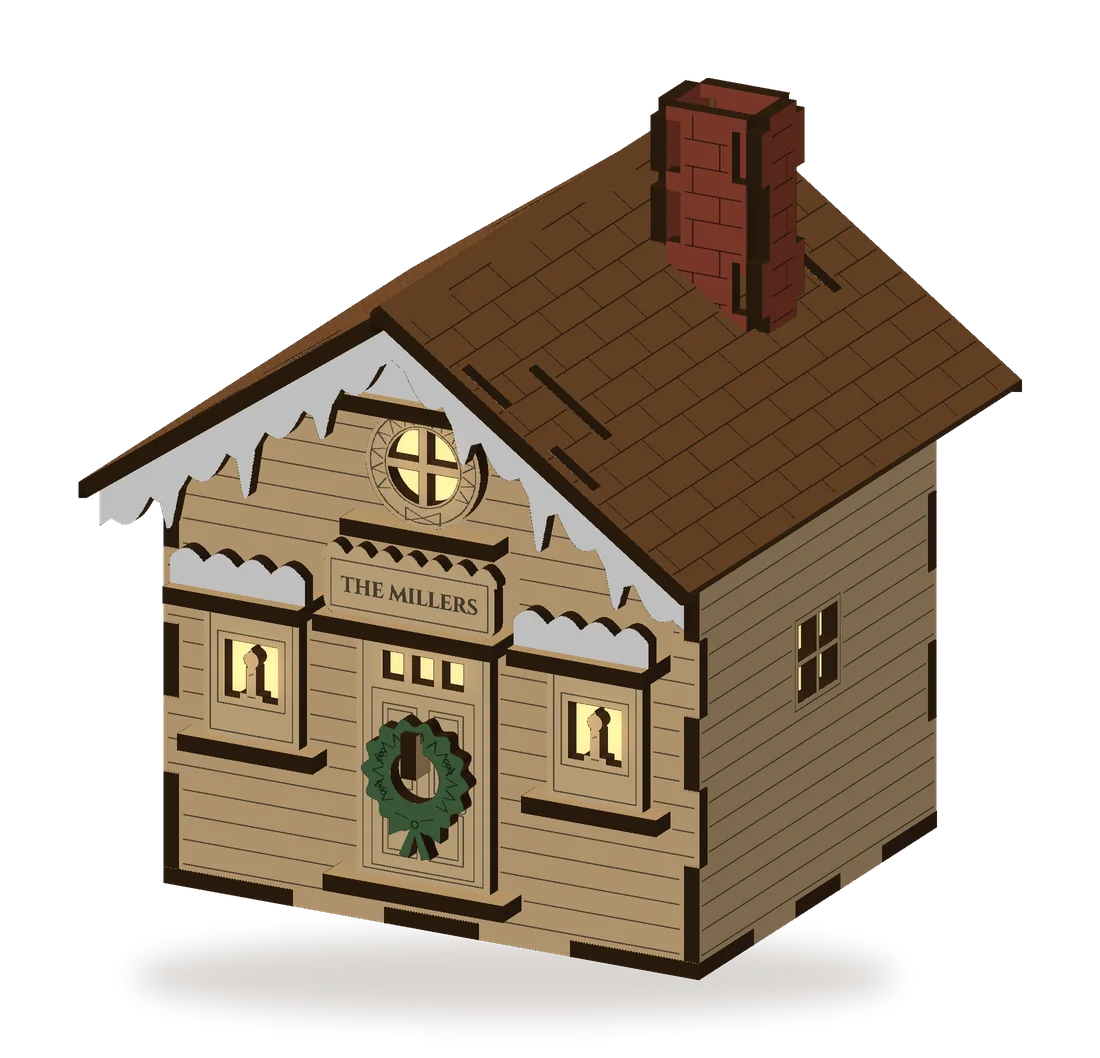

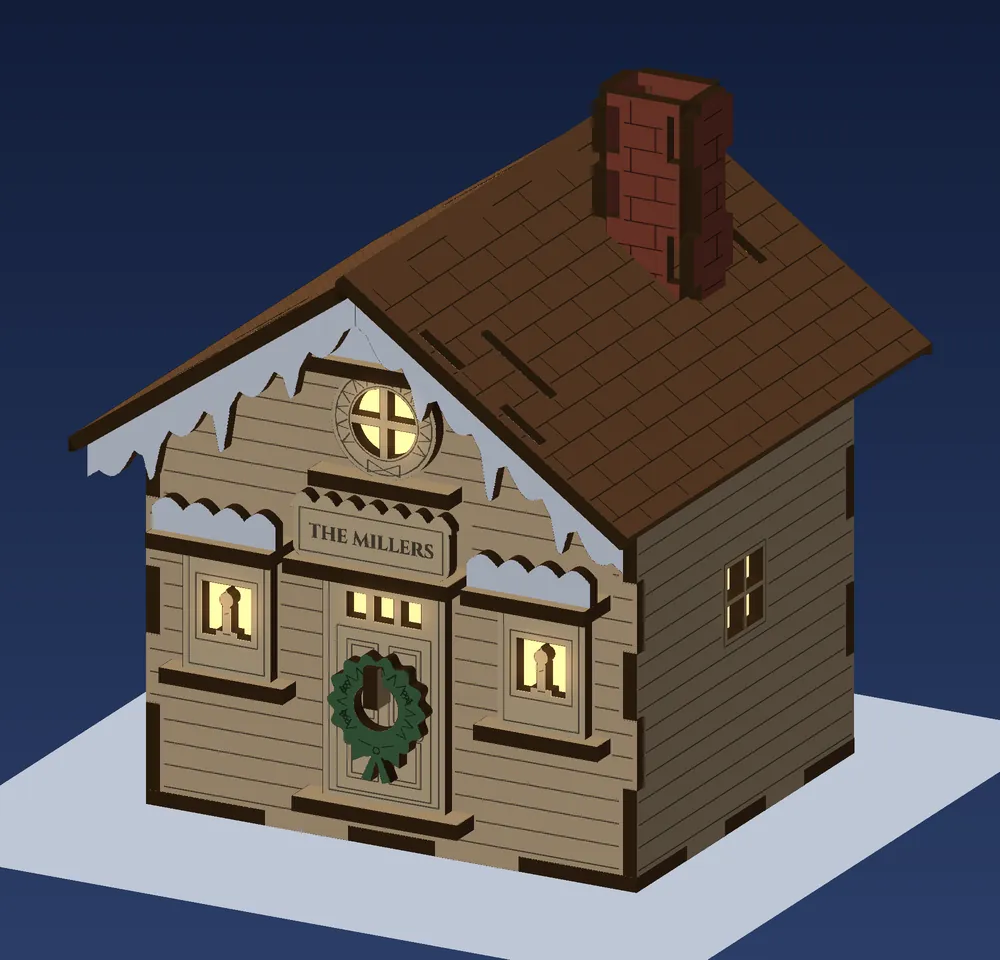

Step 12: Light it up
Switch on the LED tealight, set it on the table, and set the cottage down over it so the light comes up through the round opening in the floor. Then drape the fairy lights over the roof and switch them on too. Use LED lights only, never a real candle.
