Back to the Village
13 stepsALL HOUSES
Build directions

Village Church

The finished Village Church with its windows lit

Before you start

How a window goes on

Dress the walls flat on the table before they go up. Every layered window and door goes on in the same order, from the bottom up. Here is one window, piece by piece, with the new piece in gold.

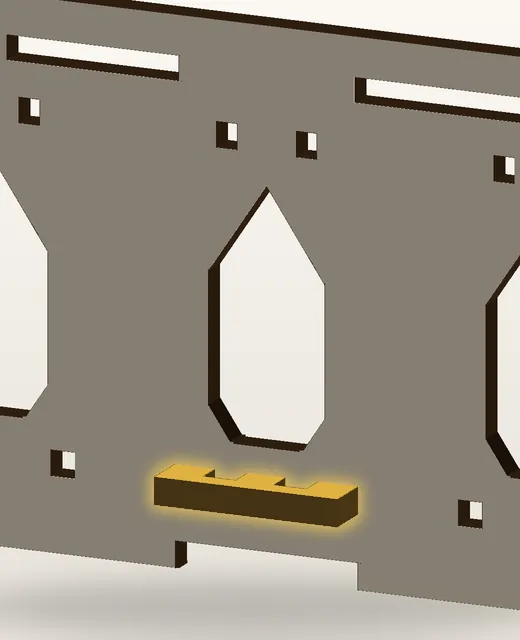

  1. Sill, shown in gold
    1. SillPush the sill's two end tabs into the pair of slots under the window.

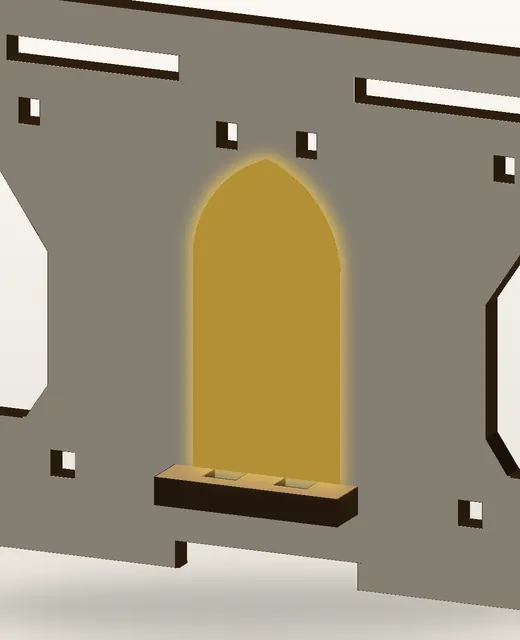

  2. Vellum, shown in gold
    2. VellumLay the vellum on the wall, its bottom edge against the sill.

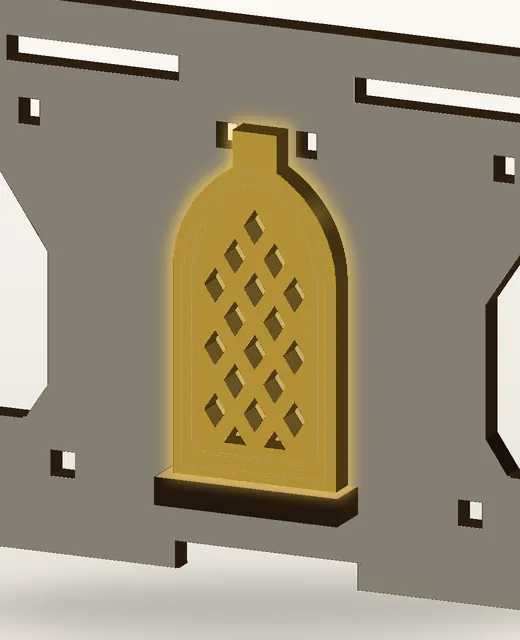

  3. Frame, shown in gold
    3. FrameSet the frame over it so its bottom tabs drop into the sill's notches.
  4. Little cap, shown in gold
    4. Little capPush the little cap in over the frame's top tab, its two small tabs into the slots above.
  1. Step 1: The lancet windows

    Step 1, the lancet windows: the new pieces shown in gold

    Lay the two side walls and the back wall flat, engraved side up. Every lancet goes on the same way: sill, vellum, frame, then the little cap. Three on each side wall and one on the back wall. The little caps are all alike, and there are two spares.

    Pieces for this step
    WINDOW × 7
    SILL × 7
    LITTLE CAP × 9
  2. Step 2: The doors and the sign

    Step 2, the doors and the sign: the new pieces shown in gold

    Lay the front wall flat, engraved side up, and work up from the bottom. Push the door step's two end tabs into their slots. Lay the doors' vellum with its bottom edge against the step, then set the doors over it, their two bottom tabs in the step's notches. The sign shelf goes over the doors' top tab, its end tabs into the wall. Stand the sign board in the shelf's two outer notches, then press the cornice on over the sign's two top tabs.

    Pieces for this step
    DOORS
    STEP
    SIGN SHELF
    SIGN
    CORNICE
  3. Step 3: The rose window

    Step 3, the rose window: the new pieces shown in gold
    Close up of step 3

    Then the rose: its little sill, the round vellum resting on it, the rose frame, and its little cap.

    Pieces for this step
    ROSE WINDOW
    LITTLE SILL
    LITTLE CAP
  4. Step 4: Floor and back wall

    Step 4, floor and back wall: the new pieces shown in gold

    Lay the floor flat. Stand the back wall, with its lancet on, on the floor's back edge so its bottom tabs drop into the notches. Engraved side faces out.

    Pieces for this step
    FLOOR
    BACK WALL
  5. Step 5: Platform

    Step 5, platform: the new piece shown in gold

    Slide the platform's back tabs into the row of slots across the back wall and hold it level, with its small square opening toward the front. The openings let the light reach the tower.

    Pieces for this step
    PLATFORM
  6. Step 6: Side walls

    Step 6, side walls: the new pieces shown in gold

    Slide each side wall in from its side. Three things catch at once: the corner tabs mesh with the back wall, the bottom tabs drop into the floor, and the row of slots near the top takes the platform's side tabs. Work it in a little at a time.

    Pieces for this step
    RIGHT SIDE WALL
    LEFT SIDE WALL
  7. Step 7: Build the tower and hang the bell

    Step 7, build the tower and hang the bell: the new pieces shown in gold

    Build the tower on its own first. Push the top plate's tabs into the row of slots near the top of the tower back wall, then slide one tower side wall on. Set the bell in with its engraved face toward the open front, one base tab in that wall's small slot under the belfry opening. Then slide the other tower side wall on: it catches the top plate's tab, the bell's other tab and the back wall's corner pockets. The two tower side walls are mirror images: engraved sides out, the long edge with tabs facing forward.

    Pieces for this step
    TOWER SIDE, A MIRRORED PAIR
    TOWER BACK
    TOWER TOP
    BELL
  8. Step 8: Set the tower on the platform

    Step 8, set the tower on the platform: the new pieces shown in gold

    Lower the whole tower onto the platform over the small square opening, tower back wall toward the back. Its bottom tabs drop into the platform's slots. The front of the tower stays open for now.

  9. Step 9: Front wall goes on last

    Step 9, front wall goes on last: the new pieces shown in gold

    Slide the front wall, with everything you dressed on it, straight back into place. It catches everything at once: the side wall corners, the floor, the platform's front tabs, the tower walls' front tabs and the tower top. Press evenly across the whole wall.

    IMPORTANTPut the front wall on last, every time. If it ever has to come off, slide it straight forward. Never pull or pry it off at an angle: it is the tallest piece and it can snap.
    Pieces for this step
    FRONT WALL
  10. Step 10: Roof, left side first

    Step 10, roof, left side first: the new piece shown in gold

    Set the left roof panel on with its notched corner at the front, fitting around the tower. The tabs on the front and back walls go up into its slots.

    Pieces for this step
    LEFT ROOF PANEL
  11. Step 11: Roof, right side

    Step 11, roof, right side: the new piece shown in gold

    Then the right panel the same way. Its top edge runs on past the ridge and laps over the top of the left panel, so the ridge closes tight with no gap for the light.

    Pieces for this step
    RIGHT ROOF PANEL
  12. Step 12: The spire

    Step 12, the spire: the new pieces shown in gold
    Close up of step 12

    Slide the short spire piece (its slot from the top) down over the tall one (its slot from the bottom) to make an X, then set its feet into the X socket on the tower top. Your kit also has a four sided spire: interlock its two ribs the same way, stand them in the four small sockets, then lay the four faces on so their slots take the ribs' tabs. The tops swap anytime.

    Pieces for this step
    TALL SPIRE PIECE
    SHORT SPIRE PIECE
    RIB
    RIB
    SPIRE FACE × 4
  13. Step 13: Light it up

    The Village Church lit up at night

    Switch on the LED tealight, set it on the table, and set the church down over it so the light comes up through the round opening in the floor. Then drape the fairy lights over the roof and switch them on too. Use LED lights only, never a real candle.

All done

Show off your village

Post a photo of it lit up and tag @glazerslaser on Instagram.

Missing a piece or something will not fit? Email support@glazerslaser.com with a photo and we will sort it out.
